Heat-Applied Cross-Linked Polyethylene Backing Repair Patch For PE Coating Damage Repair

  • Heat-Applied Cross-Linked Polyethylene Backing Repair Patch For PE Coating Damage Repair
  • Heat-Applied Cross-Linked Polyethylene Backing Repair Patch For PE Coating Damage Repair
Place of Origin China
Brand Name CNPetro
Certification ISO
Model Number HTLP 60

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type Repair Tape Heat Resistant Yes
Adhesive Type Hot Melt Adhesive Uv Resistant Yes
Flexible Yes Waterproof Yes
Durable Yes Material PE
Multi-Purpose Yes Color Black
Suitable For PE Coating Pipeline Easy To Use Yes
Size 4 Inches X 4inches
Leave a Message
Product Description

Product Profile

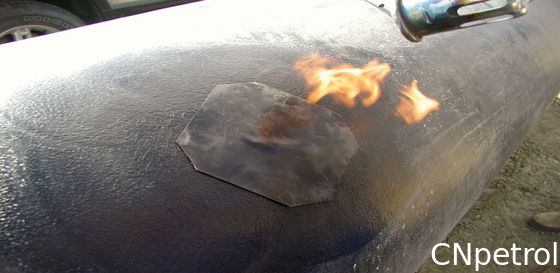

Repair Patch is heat-applied patch ,matched with mastic filler, offers an economically effective and high quality repair system for factory pipe coatings damaged mechanically during transportation, storage and laying of pipes.

Construction

PE-Repair Patch be used for PE coatings,

PP-Repair Patch be used for PP coatings.

Features & Benefits

● Adaptable on repairing the damaged areas on PE or PP coated pipes used in high shear applications, such as directional drilling.

● Provides a virtually monolithic coating repair of high quality.

●Makes installation fast and easy. Keeps installation costs low.

● Saves time with fast and convenient installation.

● Saves money by keeping inventory and logistics costs low.

Product properties

Item Standard PE patch PP patch
Tensile strength ASTMD 638 18 MPa 32 MPa
Elongation ASTM D 638 400% 600%
Hardness, Shore D ASTM D 2240 55 56
Dielectric strength at 23°C ASTMD 149 30KV/mm 30KV/mm
Lap shear ISO 21809

0.22N/mm2 @50°C

0.12N/mm2@80°C 0.10N/mm2 @60°C

 5.2N/mm2@80°C 0.35N/mm2 @6110°C
Soft point ASTM E28 105°C 140°C
