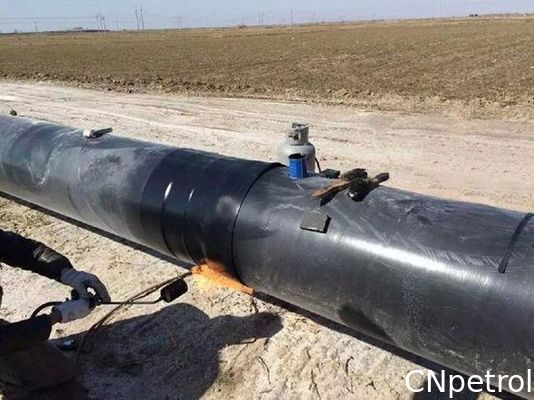

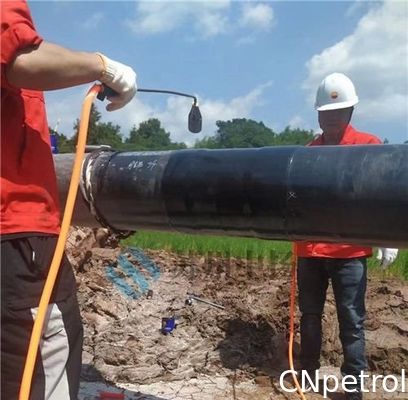

3LPP Heat Shrink Wrap Around Sleeve For Girth Weld Protection Of PP Pipelies

  • 3LPP Heat Shrink Wrap Around Sleeve For Girth Weld Protection Of PP Pipelies
  • 3LPP Heat Shrink Wrap Around Sleeve For Girth Weld Protection Of PP Pipelies
  • 3LPP Heat Shrink Wrap Around Sleeve For Girth Weld Protection Of PP Pipelies
  • 3LPP Heat Shrink Wrap Around Sleeve For Girth Weld Protection Of PP Pipelies
  • 3LPP Heat Shrink Wrap Around Sleeve For Girth Weld Protection Of PP Pipelies
Place of Origin China
Brand Name CNPetro
Certification ISO
Model Number 3LPP
Minimum Order Quantity 100 Rolls
Price USD 20-50

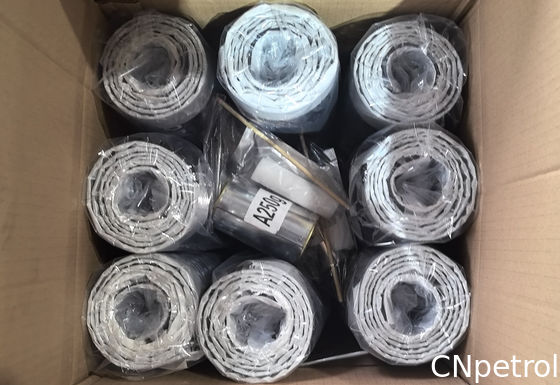

Packaging Details 300*300*320mm
Delivery Time 8 work days
Supply Ability 5000 sets/week

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Leave a Message
Product Description

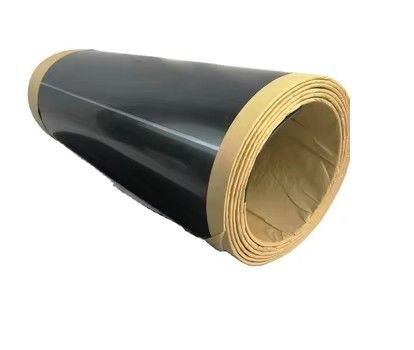

CNP 3LPP wrap-around heat shrink sleeve



Product Profile

CNP 3LPP system is a wrap-around heat shrink sleeve which replicates the structure and the performance of factory applied three-layer PP coatings. It is polypropylene based heat shrink sleeve ,operating temperature up to 110°C-140°C.

Construction

First layer: Liquid epoxy, solvent-free two-component.

Second layer: High shear strength polypropylene adhesive layer.

Third layer: Radiation cross-linked, high density polypropylene.

Features & Benefits

● CNP 3LPP allows 3 layer PP coatings have a virtually monolithic coating.

●Cross-linked PP backing made sleeve suited for higher stress conditions caused both by elevated temperatures and by soils with contraction between wet-dry cycles.

● High performance PP adhesive provides excellent resistance to Cathodic Disbondment to against abrasion and chemical cracking at elevated temperature.

Product properties

Radiation cross-link PE Backing
Tensile strength ASTM D 638 28MPa
Elongation ASTM D 638 480%
Hardness, Shore D ASTM D 2240 62
Dielectric strength at 23°C ASTMD 149 33KV/mm



3LPP Heat Shrink Wrap Around Sleeve For Girth Weld Protection Of PP Pipelies 0
