Long-Life Corrosion Protective Petrol Tape For Metal Fittings And Tanks Sealing
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Color | Yellow | Roll Length | 10M |
|---|---|---|---|
| Roll Width | 50mm,100mm,150mm,200mm,300mm | Thickness | 1.1-1.2mm |
| Weight | 1.5Kg Per Sqm | Quality | Same To Dens |
| Function | Corrosion Protection | Application | Flanges, Fittings, Pipelines,elbows |
| Second Name | Petrol Tape, Petro Tape,corrosion Protection Tape |
Product Description

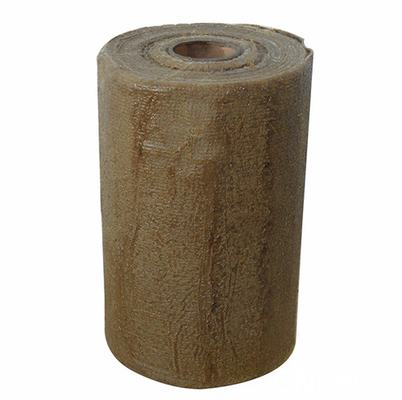

Petrol tape -Light Yellow color
Description
Petrol tape is designed for sealing and waterproofing of atmospheric buried and submerged metal surfaces.
The backing is non-toxic, non-flammable with high dielectric strength and highly resistant to mineral acids, alkalis and salts.
This tape is stable in composition and plasticity.
| Waterpoofing for | buried or exposed or marine |
| Sealing for | pipes rods, cables, valves and metal fittings, tanks |
| Consist of | petrol tape,petrol mastic,petrol primer,outer wrap protection tape |
| Backing | Non-woven, stitch-bonded, synthetic fabric carrier |
Uses
For long-life corrosion protection,
sealing and waterproofing of atmospheric buried and submerged metal surfaces.
High degree of conformability
application over irregular surface profiles including gas utility, sewer, potable water, mining,
Application
55% overlap for all applications,
For vertical applications the tape shall begin at the bottom and proceed up – providing a“weatherboard” overlap.
“cigarette wrapped” when space is too restricted or confined to apply in the preferred spiral manner, with the overlap on the topside of the pipe –providing a “weatherboard” effect.At the completion of each roll, smooth the overlaps by hand. Maintain a 100mm overlap when overlapping one roll with the end of a new roll.
Properties
| Particulars | Properties | Technical Standard |
| Thickness | ≥1.10 mm avg. | ASTM D1000 |
| Weight | ≥ 1.44 kg/m2 avg. | ASTM D1000 |
|
Tensile strength Elongation at break Dielectric rigidity (55% overlap)
|
≥ 200 N/ 50 mm 10% avg.
|
ASTM G8
|
|
Resistance to Acids (10%Hcl) Resistance Alkalies (10%NaOH) Resistance Salts (20% Nacl) Resistance to Cathodic Disbonding Application temperature Service temperature Droping Point
|
≥ 16 kV Excellent Excellent Excellent ＜ 500 mm2 -5 to +55 oC -50 to +75 oC 85 oC |
ANSI/AWWA C 209-00;
|
|
Length/Roll Width/Roll |
10 meters
50/75/100/150/200/300 mm |
SY/T 0414-2007 |
Package
| Tape Width | ㎡/Roll | Rolls/Carton | |
| 50mm | 0.50 | 36 | |
| 75mm | 0.75 | 24 | |
| 100mm | 1.0 | 18 | |
| 150mm | 1.5 | 12 | |
| 200mm | 2.0 | 8 | |
| 300mm | 3.0 | 6 |
