0.19mm PVC Electrical Tape

  • 0.19mm PVC Electrical Tape
  • 0.19mm PVC Electrical Tape
  • 0.19mm PVC Electrical Tape
  • 0.19mm PVC Electrical Tape
  • 0.19mm PVC Electrical Tape
Place of Origin China
Brand Name Viscous
Certification ISO
Model Number PVC
Minimum Order Quantity 500 Rolls
Packaging Details 360*360*320mm
Delivery Time 5 work days
Payment Terms L/C, T/T, Western Union
Supply Ability 20000 Rolls/ month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Materials PVC Color Black
Length 30M,10M Width 50mm,100mm,150mm
Elongation 250% Adhesive 2.0N/cm
Fuction Outer Protection
Leave a Message
Product Description

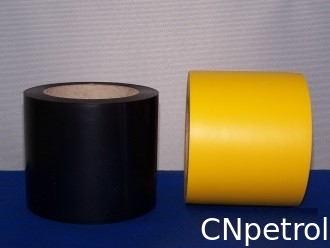

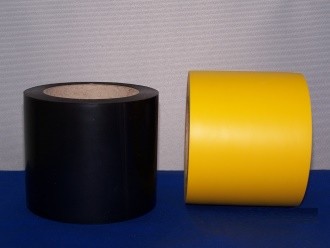

0.19mm PVC outer wrap tape



​Description



PVC outer wrap is designed for petrolatum tapes,mastic surface,

providing outer mechanical protection and insulation from soil.

PVC outer wrap coated one side with a rubber resin pressure sensitive adhesive.



0.19mm PVC Electrical Tape 00.19mm PVC Electrical Tape 1



Backing Soft permanently elastic strip
Form Available in a roll form
Adhesive High levels of surface tack
Temperature Performs at a wide range of temperatures
outer   Achieve a complete bond to the inner layer tape





Advantage



Easy application.

Stable and reliable.

Good comformability.

Non-hardening in cold weather

Good impact resistance



Application



After Applying petrolatum tapes. Then, by hand application, wrap the PVC tape ,overlap 55%.

Apply enough tension .



 0.19mm PVC Electrical Tape 2 0.19mm PVC Electrical Tape 3



Technical property



Color Black or Yellow
Thickness 0.2 mm --
Tensile Strength ≥ 15 MPa
Adhesion (To Self) 2.0 N/CM
Adhesion (To Steel) 2.0 N/CM
Elongation at Break ≥250%

Breakdown Voltage

(double layer)

 ≥20KV
Application Temperature -5 to +55oC
Service Temperature -50 to +90oC
Roll Length 30 m
Roll Width 50,100,150,200mm
