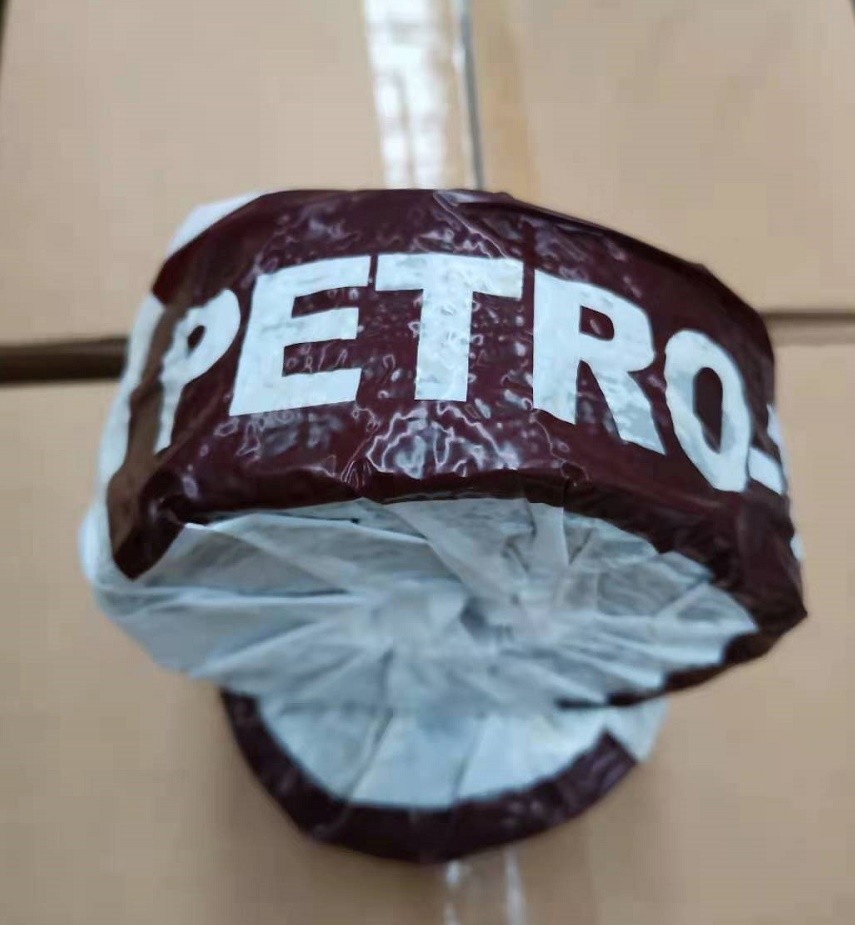

300mm Width Petrolatum Tape For Pipeline Corrosion Protection
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Color | Brown | Roll Length | 10M |
|---|---|---|---|
| Roll Width | 50mm,100mm,150mm,200mm,300mm | Thickness | 1.1-1.2mm |
| Weight | 1.5Kg Per Sqm | Quality | Same To Dens |
| Function | Corrosion Protection | Application | Flanges, Fittings, Pipelines,elbows |
| Second Name | Petrol Tape, Petro Tape,corrosion Protection Tape |
Product Description

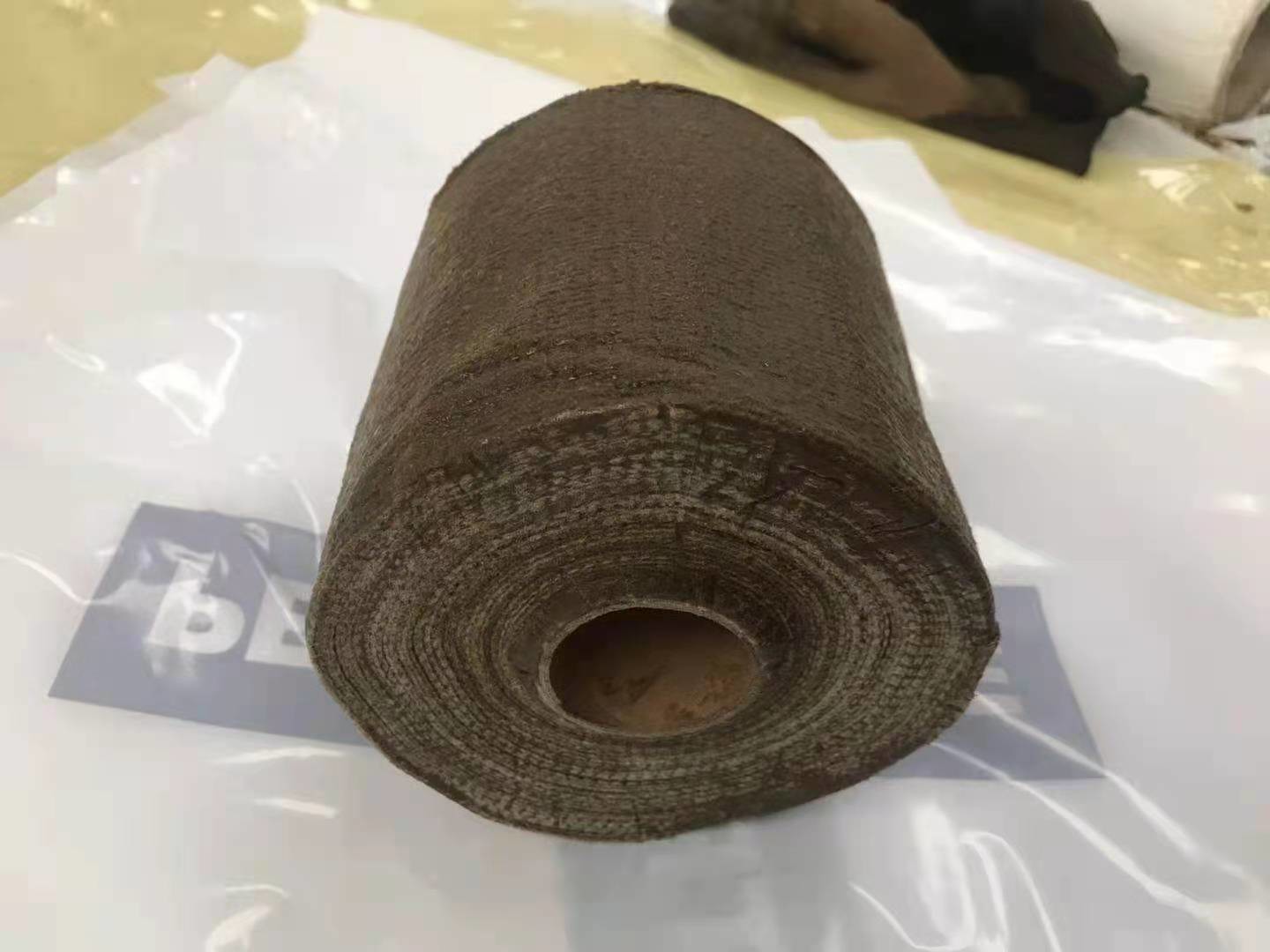

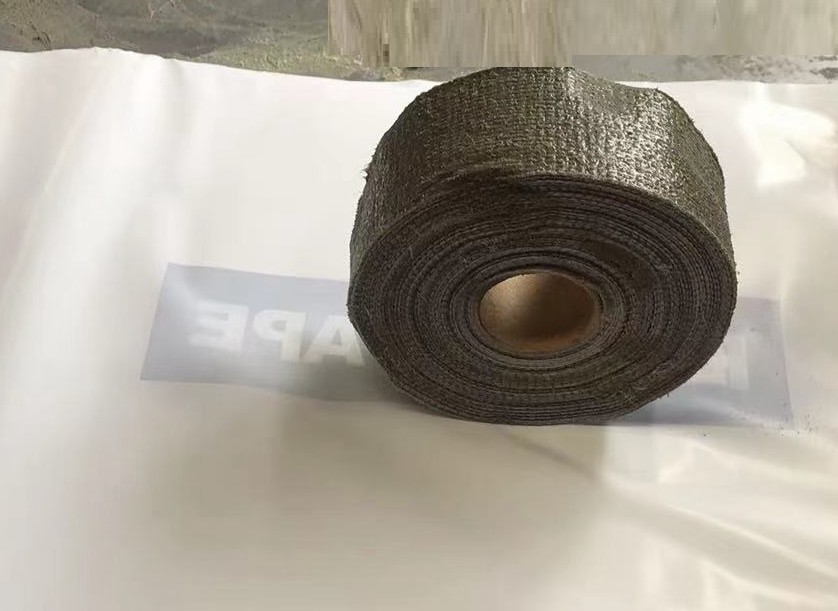

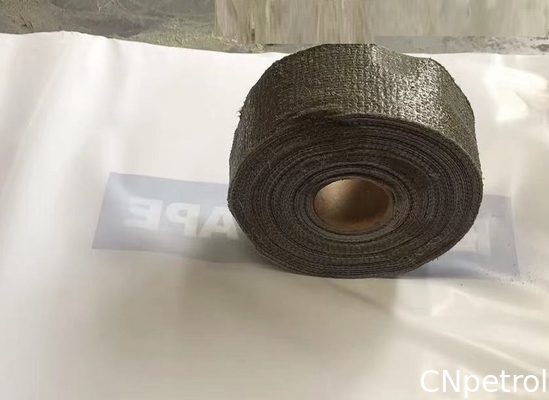

Corrosion protection Petrolatum tape
Description
Petrol tape is Non-woven, stitch-bonded, synthetic fabric carrier.

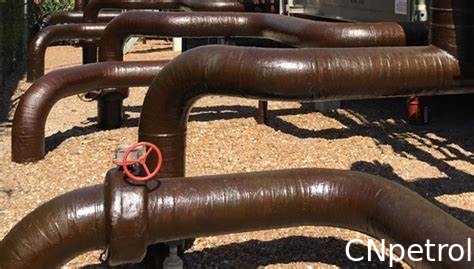

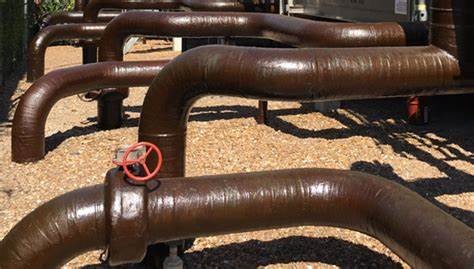

The petrolatum tape is designed for corrosion protection of buried or exposed or marine pipes rods, cables, valves and metal fittings, tanks.
| Materials |
fabric carrier Non-woven, stitch-bonded
high dielectric strength and highly resistant to mineral acids, alkalis and salts. |
 |
|
designed for |
tanks |
|
|
over irregular surface |
valves | |
| buried | metal fittings | |
|
submerged metal surfaces. |
marine pipes rods, cables, valves |
|
|
marine straight pipelines |
|
Structure
it consist of petrolatum tape,petrolatum mastic,petrolatum primer, outer wrap protection tape.
| consist | |
| Uses |
For long-life corrosion protection, sealing and waterproofing of atmospheric buried submerged metal surfaces. application over irregular surface profiles including gas utility, sewer, potable water, mining and wastewater applications. |

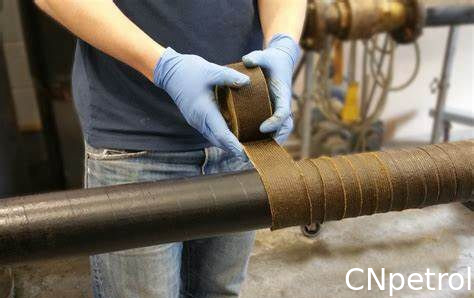

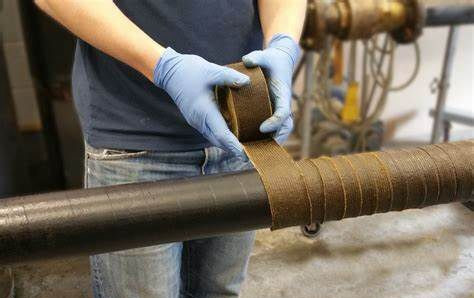

| Application |
55% overlap |
| wrapped | providing a“weatherboard” overlap. |
| vertical | “cigarette wrapped”) |
| smooth | Maintain a 100mm overlap |
Properties
| Particulars | Properties | Technical Standard |
| Thickness | ≥1.10 mm avg. | ASTM D1000 |
| Weight | ≥ 1.44 kg/m2 avg. | ASTM D1000 |
|
Tensile strength Elongation at break Dielectric rigidity (55% overlap)
|
≥ 200 N/ 50 mm 10% avg.
|
ASTM G8
|
|
Resistance to Acids (10%Hcl) Resistance Alkalies (10%NaOH) Resistance Salts (20% Nacl) Resistance to Cathodic Disbonding Application temperature Service temperature Droping Point
|
≥ 16 kV Excellent Excellent Excellent ＜ 500 mm2 -5 to +55 oC -50 to +75 oC 85 oC |
ANSI/AWWA C 209-00;
|
|
Length/Roll Width/Roll |
10 meters
50/75/100/150/200/300 mm |
SY/T 0414-2007 |

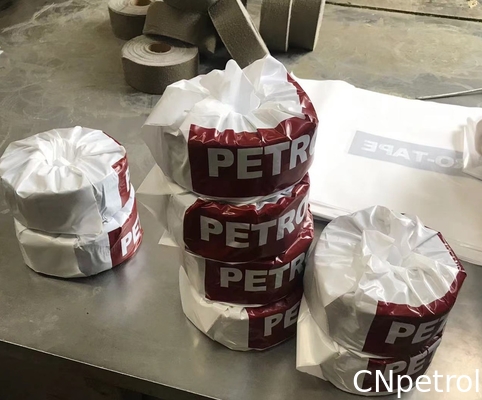

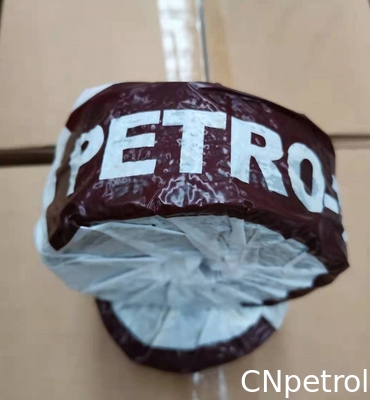

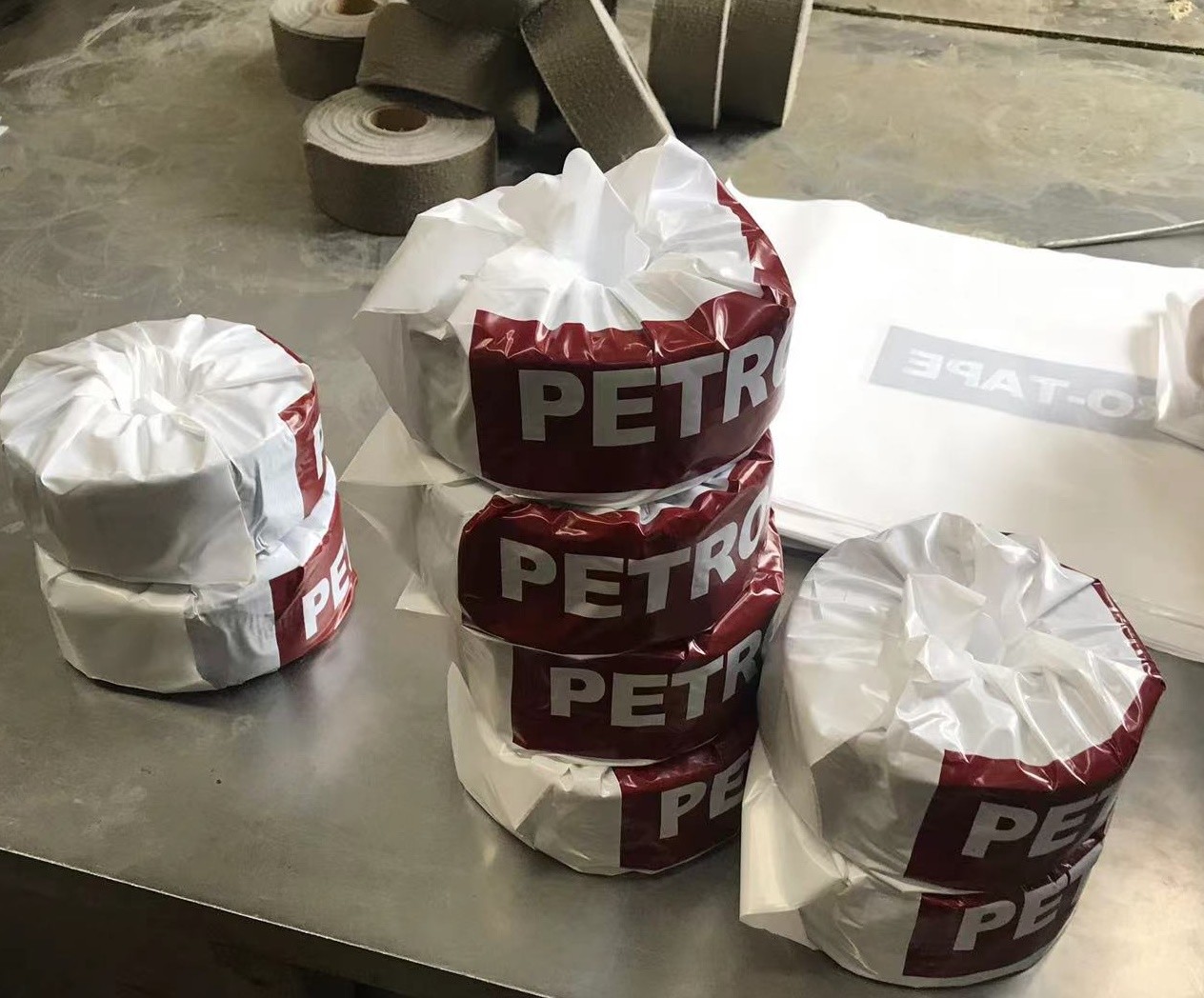

Package
| Tape Width | ㎡/Roll | Rolls/Carton | |
| 50mm | 0.50 | 36 | |
| 75mm | 0.75 | 24 | |
| 100mm | 1.0 | 18 | |
| 150mm | 1.5 | 12 | |
| 200mm | 2.0 | 8 | |
| 300mm | 3.0 | 6 |
