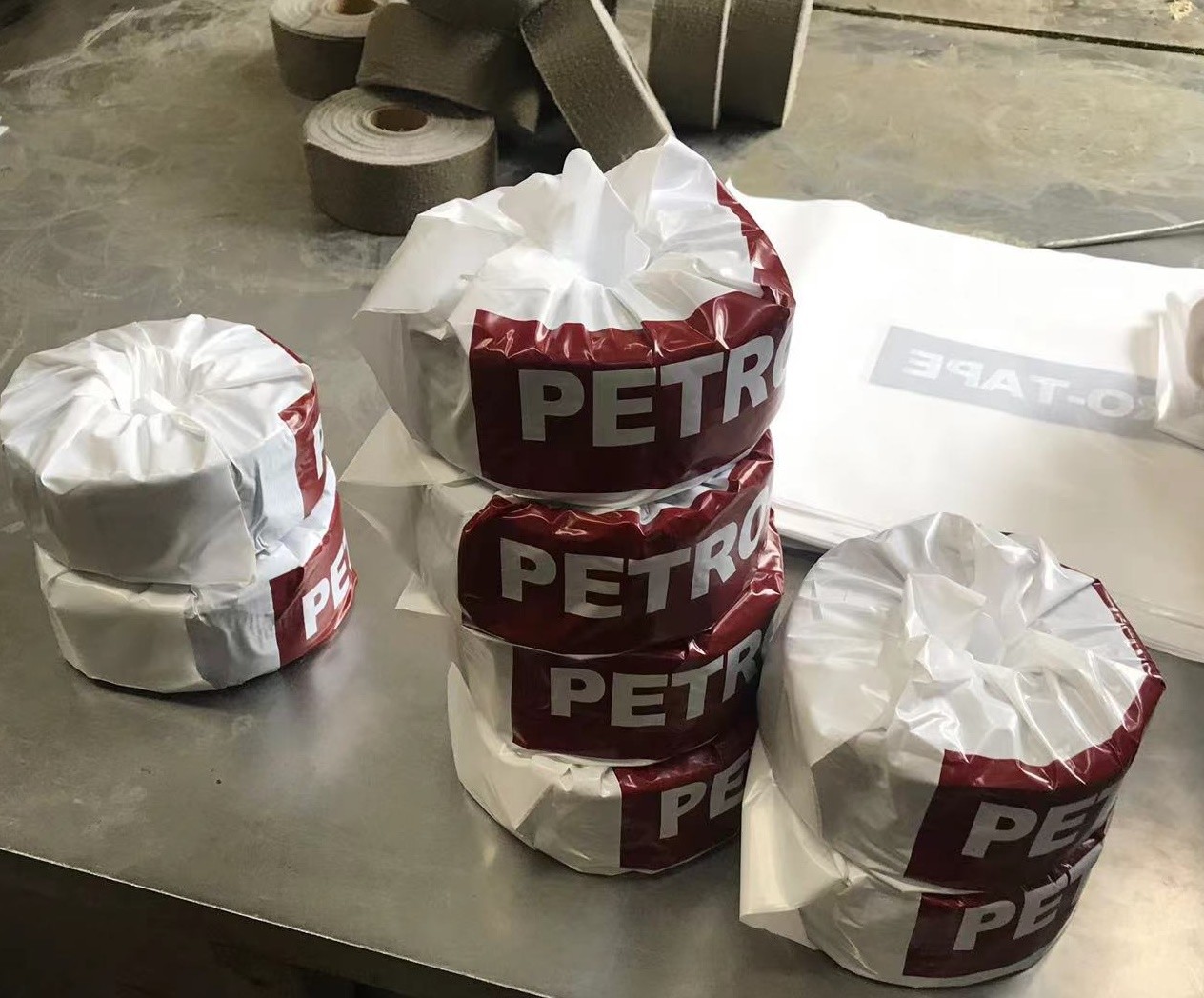

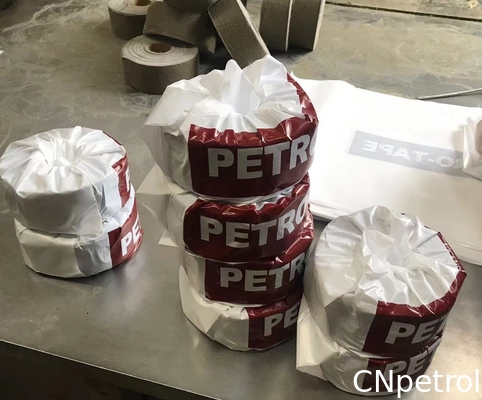

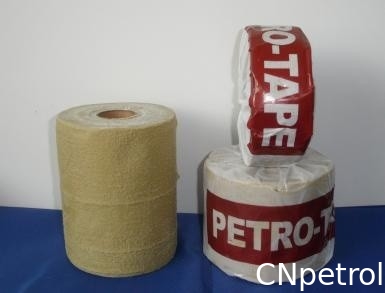

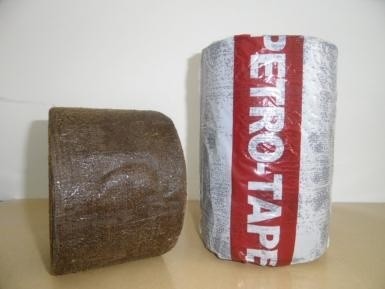

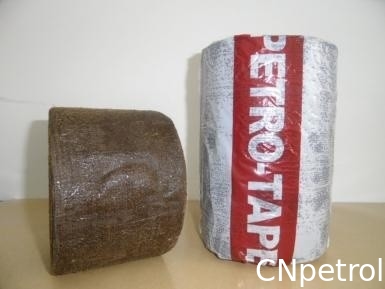

Petrolatum Tape
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Color | Brown | Roll Length | 10M |
|---|---|---|---|
| Roll Width | 50mm,100mm,150mm,200mm,300mm | Thickness | 1.1-1.2mm |
| Weight | 1.5Kg Per Sqm | Quality | Same To Dens |
| Function | Corrosion Protection | Application | Flanges, Fittings, Pipelines,elbows |
| Second Name | Petrol Tape, Petro Tape,corrosion Protection Tape |
Product Description

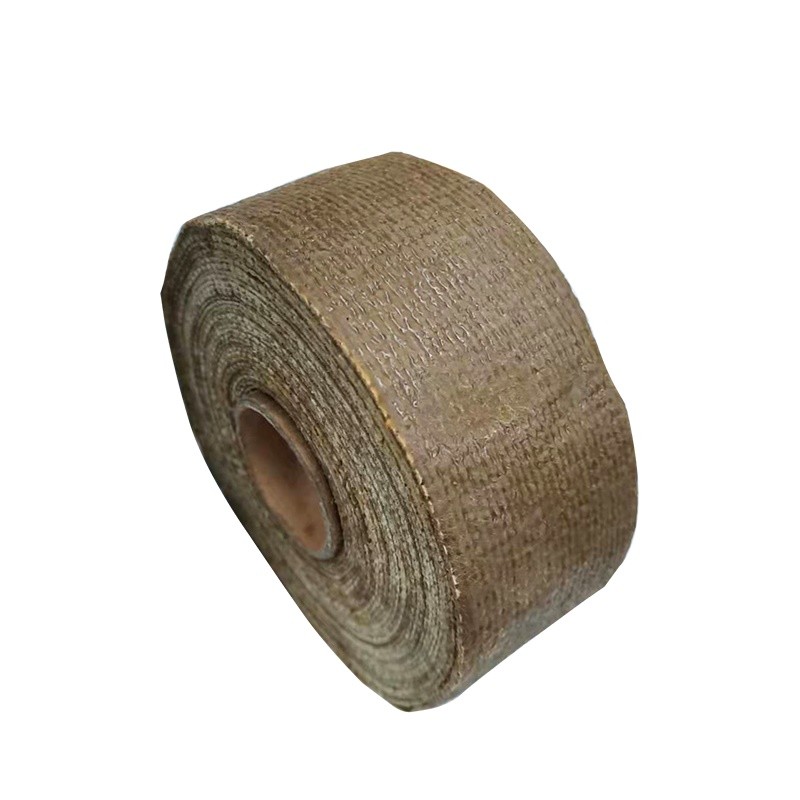

Non-woven Petrolatum tape
Description
Non-woven petrolatum tape is made of stitch-bonded synthetic fabric carrier,
and coated with a neutral petrolatum compound blended with inert fillers and corrosion inhibitors.

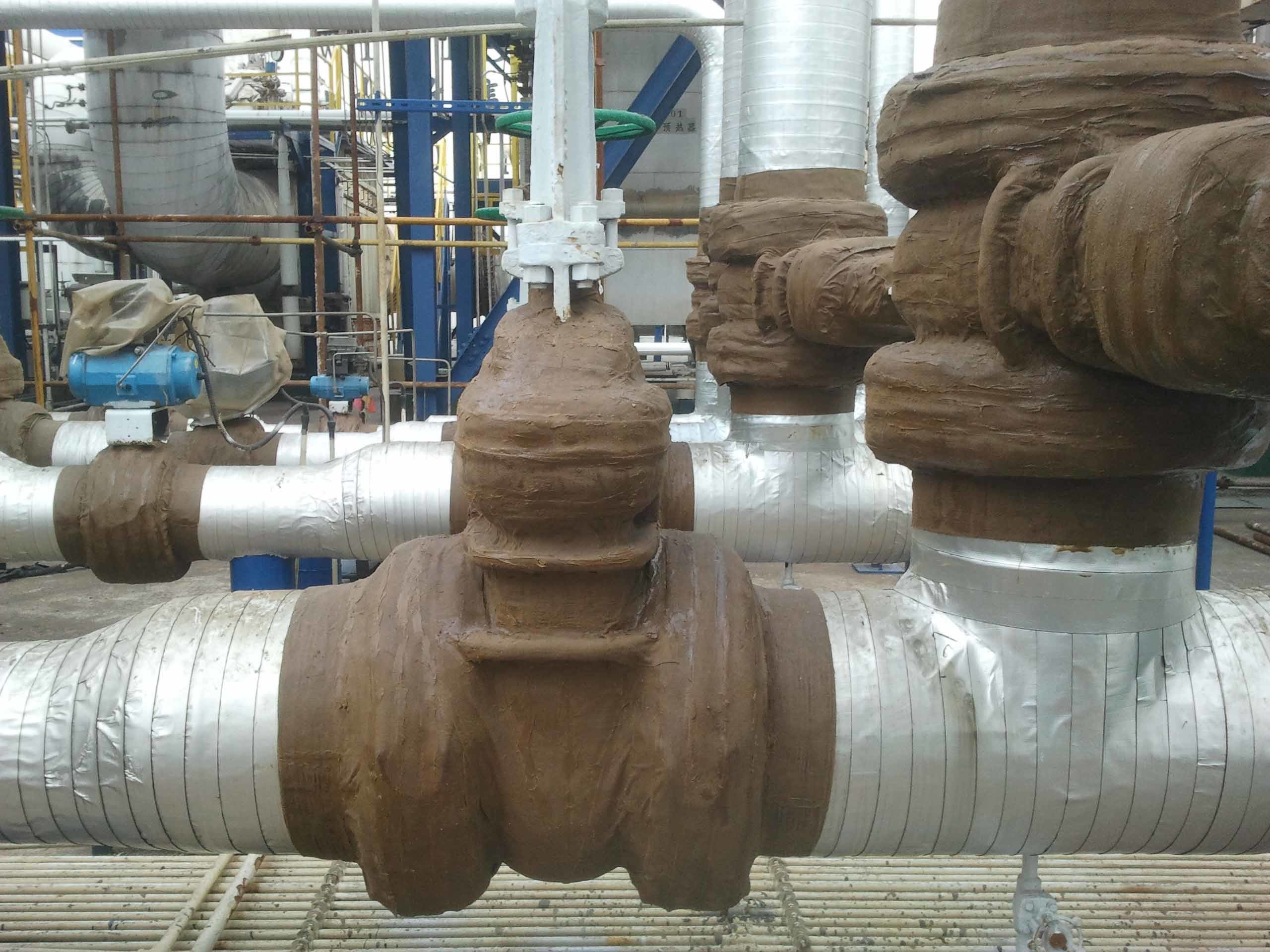

This petrolatum tape designed for corrosion protection of buried or exposed or marine pipes rods, cables, valves and metal fittings, tanks.
it also be called grease tape, samilar to denso tape.
| Designed for | marine pipes rods, cables, valves and metal fittings, tanks. |
| samilar to | dens tape. |
| Materials | Non-woven, stitch-bonded, synthetic fabric carrier |
Uses
Application over irregular surface profiles including gas utility, sewer, potable water, mining,
For long-life corrosion protection
Sealing and waterproofing of buried and submerged metal surfaces
Use for wastewater applications.
Characteristics
The high degree of conformability
Non-toxic, non-flammable with high dielectric strength
Highly resistant to mineral acids, alkalis and salts.
Application
Spirally wrapped 55% overlap for all applications,
For vertical applications the tape shall providing a“weatherboard” overlap.
May apply longitudinally (i.e., “cigarette wrapped”) when space is too restricted or confined to apply in the preferred spiral manner, with the overlap on the topside of the pipe –providing a “weatherboard” effect.At the completion of each roll, smooth the overlaps by hand. Maintain a 100mm overlap when overlapping one roll with the end of a new roll.
Properties
| Particulars | Properties | Technical Standard |
| Thickness | ≥1.10 mm avg. | ASTM D1000 |
| Weight | ≥ 1.44 kg/m2 avg. | ASTM D1000 |
|
Tensile strength Elongation at break Dielectric rigidity (55% overlap)
|
≥ 200 N/ 50 mm 10% avg.
|
ASTM G8
|
|
Resistance to Acids (10%Hcl) Resistance Alkalies (10%NaOH) Resistance Salts (20% Nacl) Resistance to Cathodic Disbonding Application temperature Service temperature Droping Point
|
≥ 16 kV Excellent Excellent Excellent ＜ 500 mm2 -5 to +55 oC -50 to +75 oC 85 oC |
ANSI/AWWA C 209-00;
|
|
Length/Roll Width/Roll |
10 meters
50/75/100/150/200/300 mm |
SY/T 0414-2007 |
Package
| Tape Width | ㎡/Roll | Rolls/Carton | |
| 50mm | 0.50 | 36 | |
| 75mm | 0.75 | 24 | |
| 100mm | 1.0 | 18 | |
| 150mm | 1.5 | 12 | |
| 200mm | 2.0 | 8 | |
| 300mm | 3.0 | 6 |
